BMC

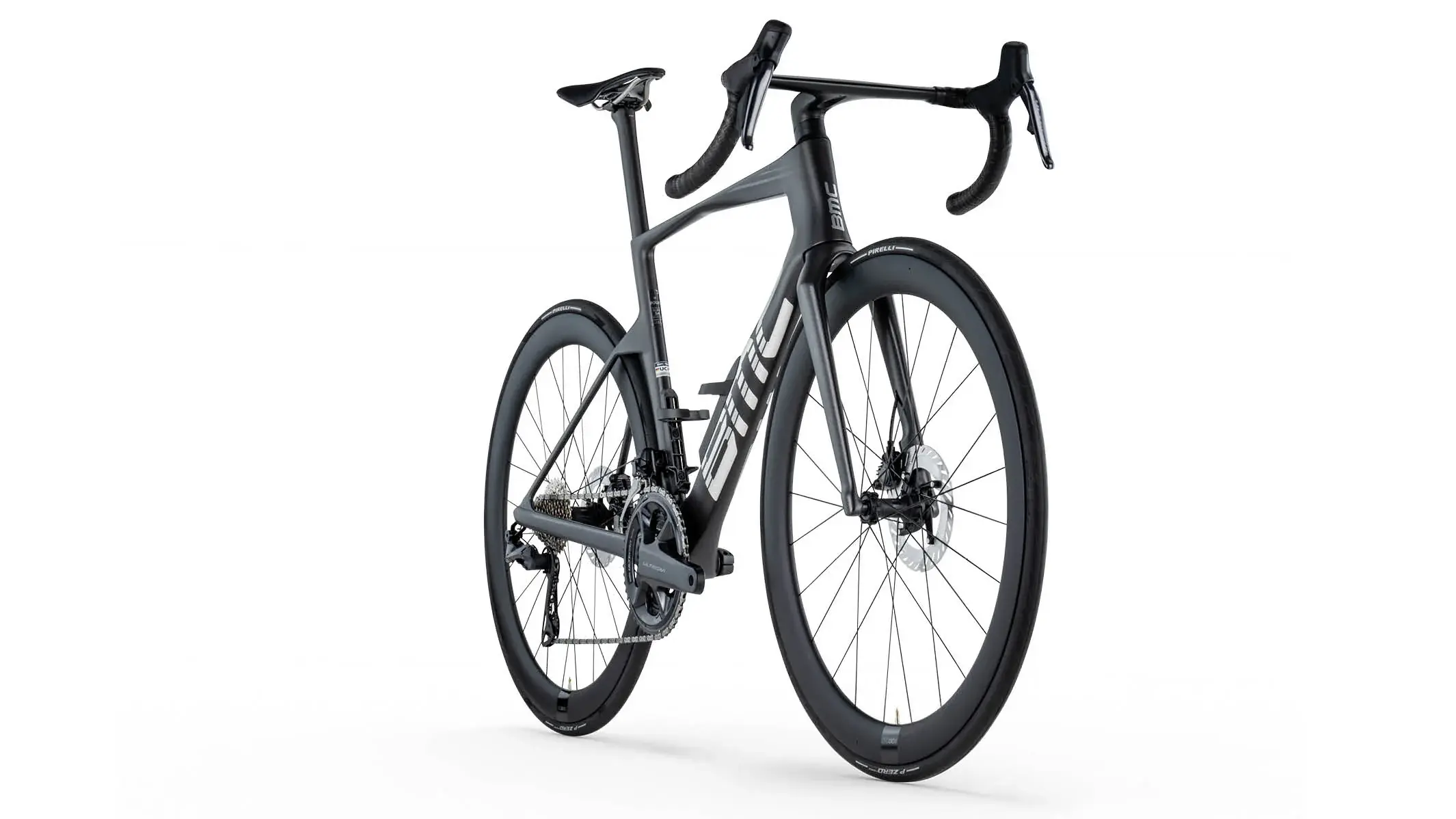

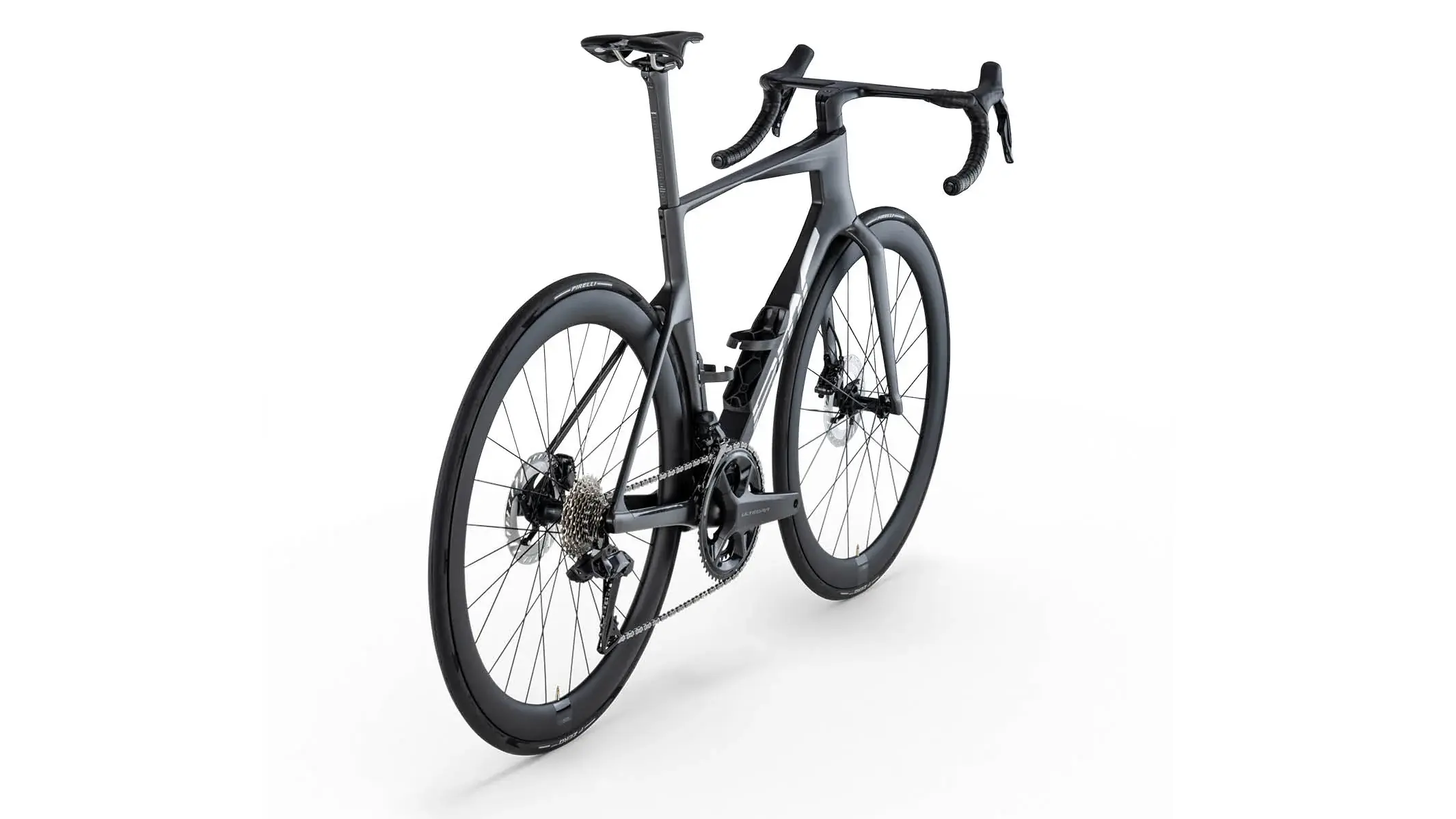

Teammachine R-01 Four
2026Road - Race
Teammachine R-01 Four Data
- MSRP
- CHF 8499.00
- Frame
- Carbon
- Gears
- 12
- Weight
- 7.5 kg
- Colors
- Anthracite / Carbon
- EAN
- 7630906521380
Looking for replacement tires?
View verified compatible tires for the 2026 Teammachine R-01 Four.
Components
Complete component specification list for this variant.
Wheels
Front
Front Tire
Pirelli P Zero Race TLR RS | Tubeless (26mm)
- Width
- 26mm
Front Wheel
CR SL | Tubeless Ready | mm () (12 x 100mm Thru-Axle)
- Axle Dimension
- 12 x 100mm Thru-Axle
- Rotor mount
- Center Lock
- Rim height
- 50 mm
- Material
- Carbon
- Position
- Front
Rear
Rear Tire
Pirelli P Zero Race TLR RS | Tubeless (28mm)
- Width
- 28mm
Rear Wheel
CR SL | Tubeless Ready | mm () (12 x 142mm Thru-Axle)
- Axle Dimension
- 12 x 142mm Thru-Axle
- Rotor mount
- Center Lock
- Rim height
- 50 mm
- Material
- Carbon
- Position
- Rear
Frame
Frame
Teammachine R 01 | 01 Premium with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc
- Rear Axle Dimension
- 12 x 142mm Thru-Axle
- Tyre clearance
- 30 65
- Material
- Carbon
Fork
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc
- Front Axle Dimension
- 12 x 100mm Thru-Axle
Seat
Seatpost
Teammachine R 01 | 01 Premium Seatpost | 10mm Offset
- Material
- Carbon
Seatpost Clamp
Teammachine R 01 seatpost clamp mechanism (integrated)
Saddle
Selle Italia SLR Boost Superflow | TI316 Rail | 145mm
Drivetrain
Front
Front Derailleur
Shimano Ultegra Di2 (FD-R8150)
Front Shifter
Shimano Ultegra Di2 (ST-R8170)
Rear
Rear Derailleur
Shimano Ultegra Di2 (RD-R8150)
Rear Shifter
Shimano Ultegra Di2 (ST-R8170)
Bottom Bracket
Shimano Ultegra Bottom Bracket (SM-BB72-41B)
- Standard
- Press-Fit
Chainring
Shimano Ultegra (FC-R8100) chainrings
- Gears
- 2
- Ring 1
- 52 Teeth
- Ring 2
- 36 Teeth
Cassette
Shimano Ultegra (CS-R8101)
- Number of sprockets
- 12
- Range
- 11-30T
Chain
Shimano CN-M8100
- Gears
- 12
Crank
Shimano Ultegra (FC-R8100)
Brakes
Front
Front Brake
Shimano Ultegra (BR-R8170)
Front Disc
Shimano Ultegra (RT-CL800)
- Diameter
- 160 mm
Rear
Rear Brake
Shimano Ultegra (BR-R8170)
Rear Disc
Shimano Ultegra (RT-CL800)
- Diameter
- 160 mm
Cockpit
Handlebar
ICS Aero | One-Piece Full Cockpit | mm drop, mm reach, 12.5° flare
- Material
- Carbon
- Drop
- 135 mm
- Reach
- 77 mm
