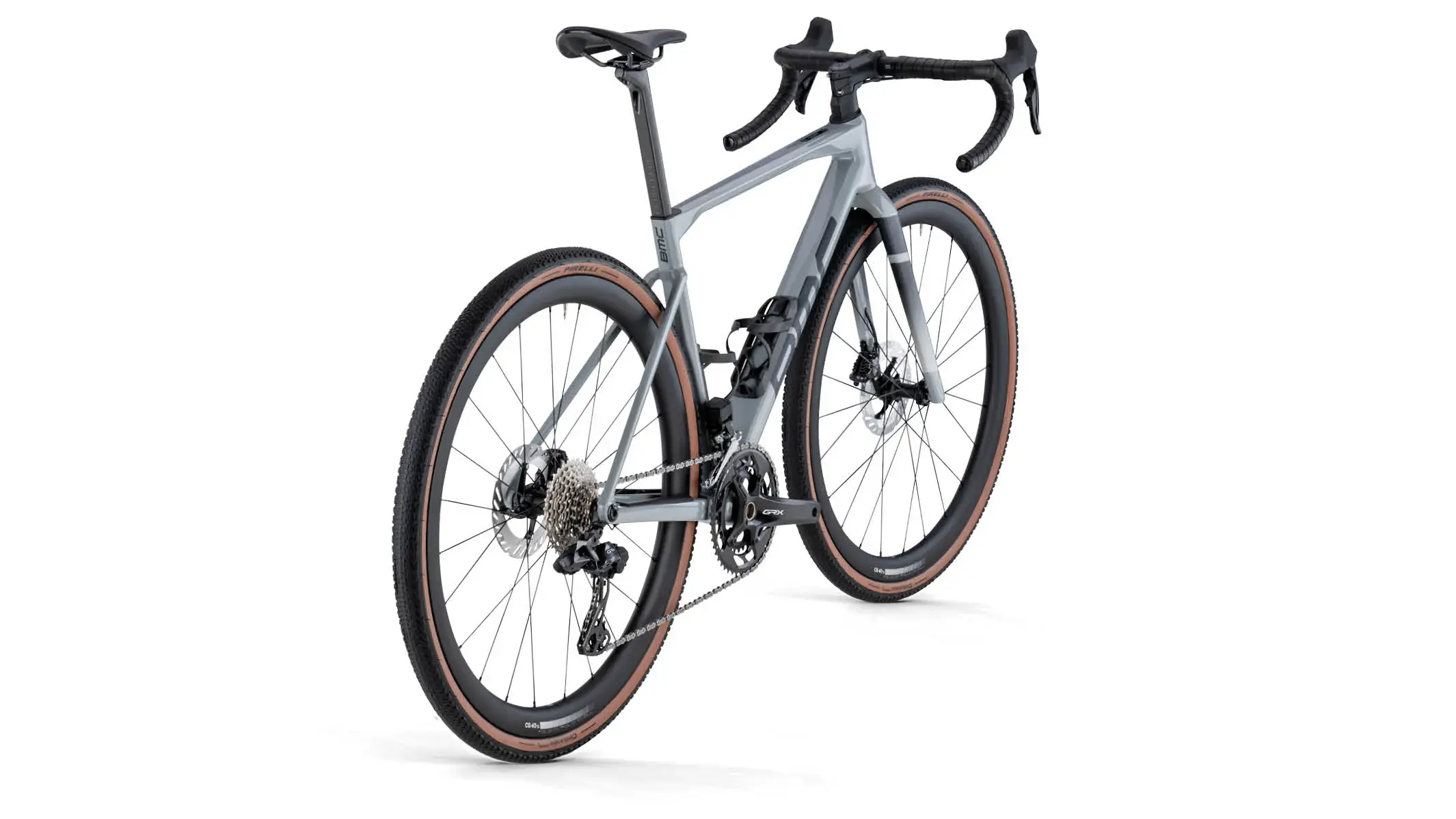

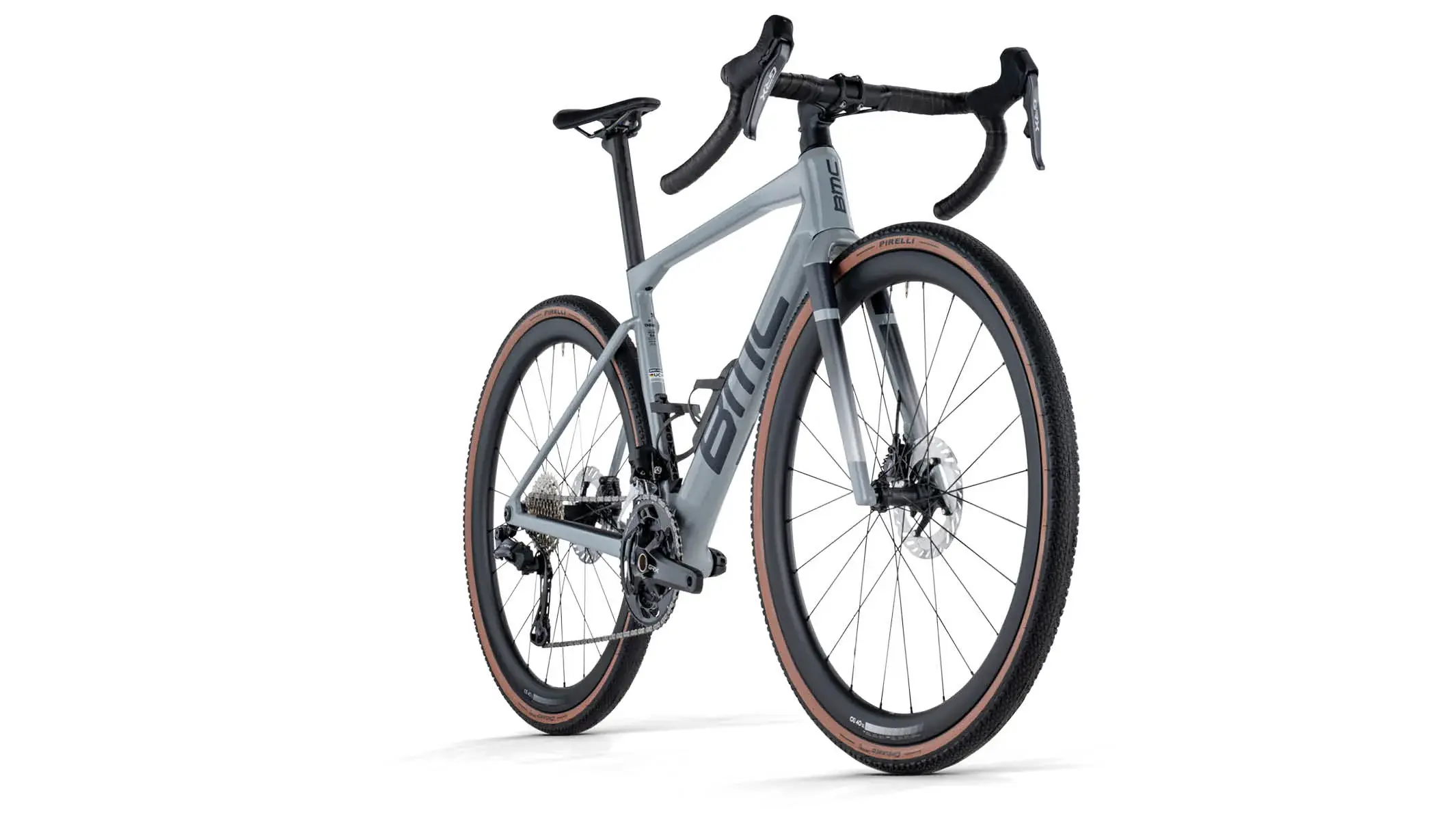

BMC

Kaius 01 Three

2026Gravel

Kaius 01 Three Data

MSRP: CHF 6999.00
Frame: Carbon
Weight: 8.3 kg
Colors: Stone Grey
EAN: 7630906521748

View on BMC

Looking for replacement tires?

View verified compatible tires for the 2026 Kaius 01 Three.

Compare Upgrades

Components

Complete component specification list for this variant.

Wheels

Front

Front Wheel

CG SL | Tubeless Ready | mm (12 x 100mm Thru-Axle)

Axle Dimension: 12 x 100mm Thru-Axle
Rotor mount: Center Lock
Rim height: 39 mm
Material: Carbon
Position: Front

Front Tire

Pirelli Cinturato Gravel H (40mm)

Width: 40mm

Rear

Rear Wheel

CG SL | Tubeless Ready | mm (12 x 142mm Thru-Axle)

Axle Dimension: 12 x 142mm Thru-Axle
Rotor mount: Center Lock
Rim height: 39 mm
Material: Carbon
Position: Rear

Rear Tire

Pirelli Cinturato Gravel H (40mm)

Width: 40mm

Frame

Fork

Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc

Front Axle Dimension: 12 x 100mm Thru-Axle

Frame

Kaius 01 Premium with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout (Universal Derailleur Hanger) | TCC Race Compliance Level | Flat Mount Disc

Rear Axle Dimension: 12 x 142mm Thru-Axle
Tyre clearance: 44 65
Material: Carbon

Seat

Seatpost

Kaius 01 Premium D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Material: Carbon

Saddle

Fizik Vento Argo X3 | Kium rails | 140mm

Drivetrain

Front

Front Derailleur

Shimano GRX Di2 (FD-RX825)

Front Shifter

Shimano GRX Di2 (ST-RX825)

Rear

Rear Derailleur

Shimano GRX Di2 (RD-RX825)

Rear Shifter

Shimano GRX Di2 (ST-RX825)

Bottom Bracket

Shimano Ultegra Bottom Bracket (SM-BB72-41B)

Standard: Press-Fit

Cassette

Shimano Ultegra (CS-R8101)

Number of sprockets: 12
Range: 11-30T

Chain

Shimano CN-M8100

Gears: 12

Chainring

Shimano GRX (FC-RX80-)

Gears: 2
Ring 1: 48 Teeth
Ring 2: 31 Teeth

Crank

Shimano GRX (FC-RX820-2)

Cockpit

Stem

BMC RSM 01 | Integrated Cockpit System Technology

Handlebar

BMC HB D4 03, 0, | | Endurance Geometry | 5mm drop, mm reach, ° flare

Angle: 12 °
Material: Alloy 6061
Drop: 125 mm
Reach: 70 mm

Brakes

Front

Front Brake

Shimano GRX (BR-RX820)

Front Disc

Shimano RT-CL800 | Centerlock

Diameter: 180 mm

Rear

Rear Brake

Shimano GRX (BR-RX820)

Rear Disc

Shimano RT-CL800 | Centerlock

Diameter: 160 mm
