BMC

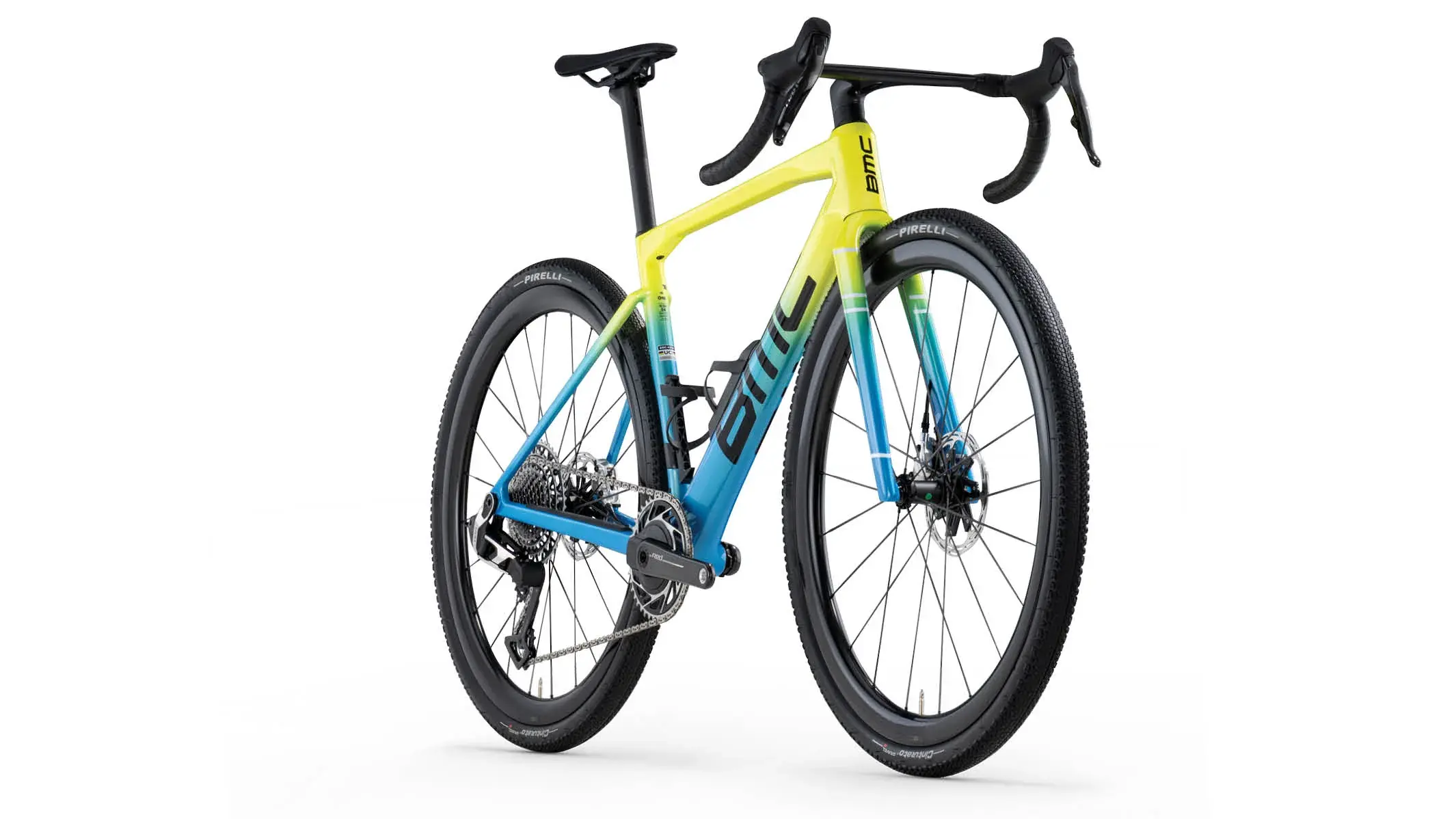

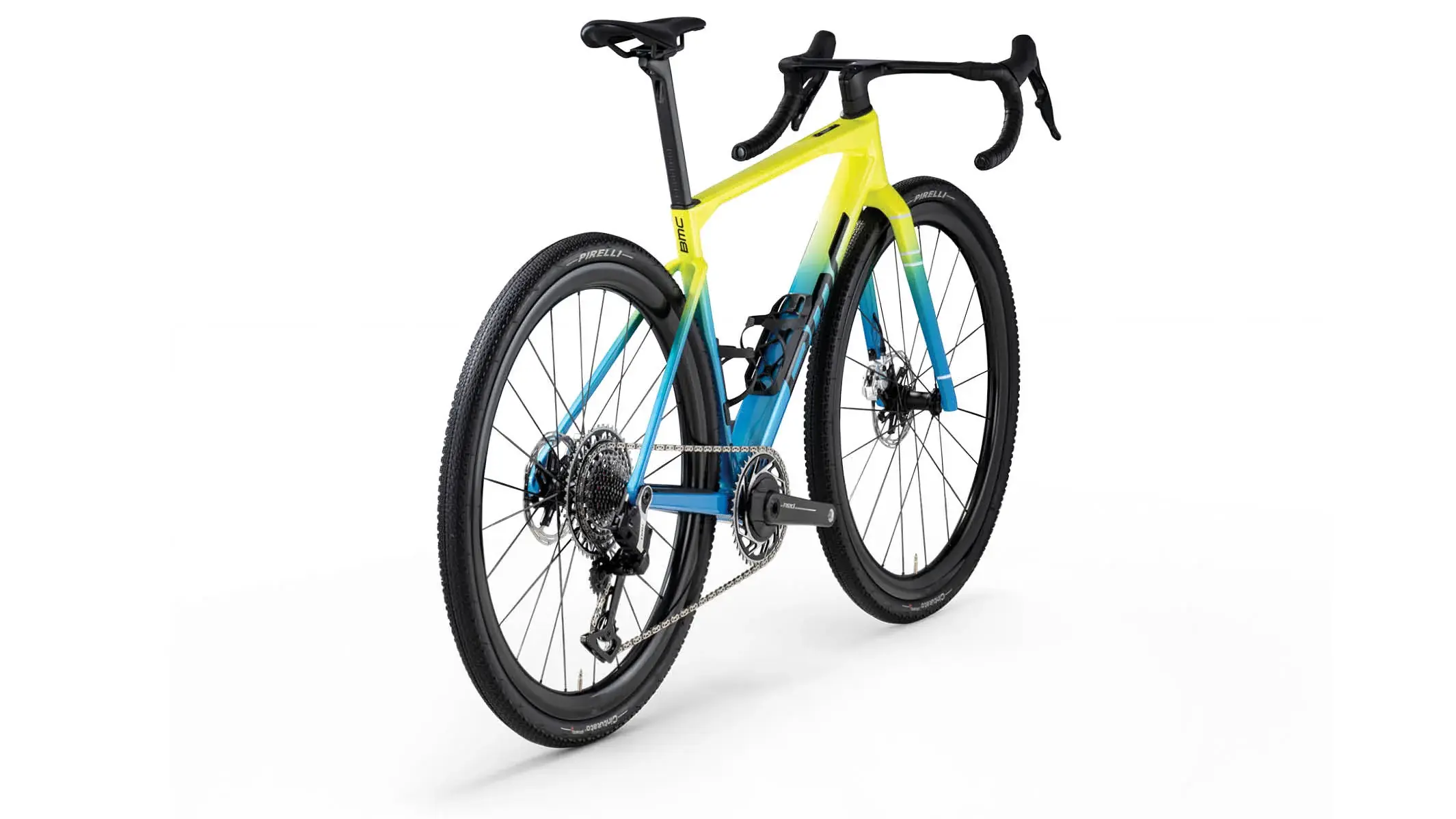

Kaius 01 ONE
2026Gravel
Kaius 01 ONE Data
- MSRP
- CHF 10999.00
- Frame
- Carbon
- Gears
- 13
- Weight
- 7.5 kg
- Colors
- Acid Yellow / River Blue
- EAN
- 7630906523360
Looking for replacement tires?
View verified compatible tires for the 2026 Kaius 01 ONE.
Components
Complete component specification list for this variant.
Brakes
Front
Front Disc
SRAM Paceline X | Centerlock
- Diameter
- 160 mm
Front Brake
SRAM Red AXS (ED-RED-E1)
Rear
Rear Disc
SRAM Paceline X | Centerlock
- Diameter
- 160 mm
Rear Brake
SRAM Red AXS (ED-RED-E1)
Drivetrain
Chain
SRAM RED (CN-RED-E1)
- Gears
- 12
Rear Shifter
SRAM Red AXS (ED-RED-E1)
Chainring
SRAM Red XPLR AXS DUB Wide E (Chainrings: T)
- Gears
- 1
- Ring 1
- 42 Teeth
Rear Derailleur
SRAM Red XPLR AXS (RD-RED-1E-E1)
- Gears
- 13
Cassette
SRAM Red XPLR (CS-XG-91-E1)
- Number of sprockets
- 13
- Range
- 10-46T
Crank
SRAM Red XPLR AXS DUB Wide E1
Bottom Bracket
SRAM Press Fit DUB
Wheels
Front
Front Wheel
CG SL | Tubeless Ready | mm (12 x 100mm Thru-Axle)
- Axle Dimension
- 12 x 100mm Thru-Axle
- Rotor mount
- Center Lock
- Rim height
- 39 mm
- Material
- Carbon
- Position
- Front
Front Tire
Pirelli Cinturato Gravel H (40mm)
- Width
- 40mm
Rear
Rear Wheel
CG SL | Tubeless Ready | mm (12 x 142mm Thru-Axle)
- Axle Dimension
- 12 x 142mm Thru-Axle
- Rotor mount
- Center Lock
- Rim height
- 39 mm
- Material
- Carbon
- Position
- Rear
Rear Tire
Pirelli Cinturato Gravel H (40mm)
- Width
- 40mm
Frame
Frame
Kaius 01 Premium with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout | TCC Race Compliance Level | Flat Mount Disc
- Rear Axle Dimension
- 12 x 142mm Thru-Axle
- Tyre clearance
- 44 65
- Material
- Carbon
Fork
Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc
- Front Axle Dimension
- 12 x 100mm Thru-Axle
Cockpit
Handlebar
ICS Aero | One-Piece Full Cockpit | mm drop, mm reach, ° flare
- Angle
- 12.5 °
- Material
- Carbon
- Drop
- 135 mm
- Reach
- 77 mm
Seat
Saddle
Fizik Vento Argo X1 Carbon | 140mm
Seatpost
Kaius 01 Premium D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
- Material
- Carbon
